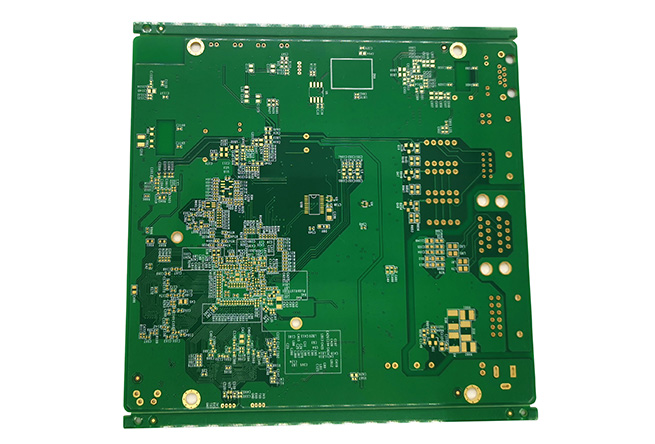

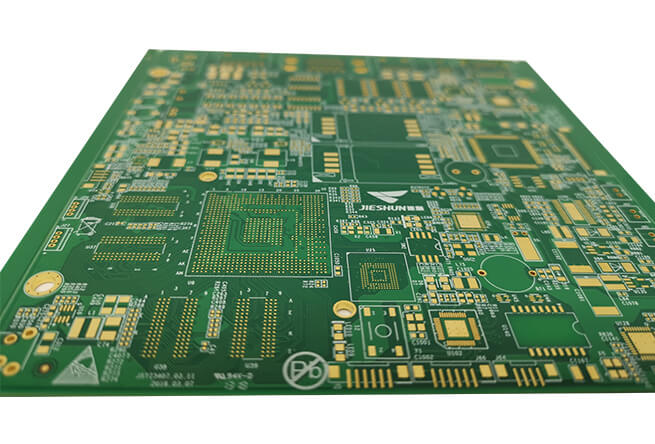

OEM 12 layer 16 communication chip pcb board

OEM 12 layer 16 communication chip pcb board

Brand Name: HK CT TECH

Model Number: OEM PCB design

Base Material: fr-4 flex-rigid pcb board, Fr-4,ALu,Roger,leadfree

Copper Thickness: 1oz

Board Thickness: 1.6mm

Surface Finishing: imersion gold

Product name: HK CTT Quick Prototype Power Printed Circuit Board

Function: PCBA Board Service Prototype PCB Assembly

surface finishing: imersion gold/tin/Au/silver/tin,Osp,Hasl

Application: Consumer Electronics

Solder mask color: Green\White\Red\Blue\Black

PCBA type: Electronics Manufacturing board

Layer: 1-48 Layers (include Rigid-Flex PCB)

Details

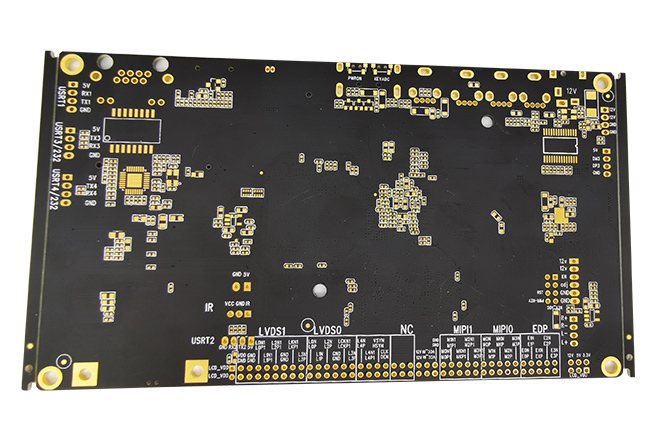

Electronics black FR4 4 layer 2oz finish copper circuit pcb for power supply

Electronics black FR4 4 layer 2oz finish copper circuit pcb for power supply

Electronics black FR4 4 layer 2oz finish copper circuit pcb for power supply

Electronics black FR4 4 layer 2oz finish copper circuit pcb for power supply

Electronics black FR4 4 layer 2oz finish copper circuit pcb for power supply


PCB processing capability

PCB serviceProcess capability
Layer1-20 layers
Maximum size≤600*500mm
Thickness0.1-5.0mm
Wire copper foil thickness17-343um(10oz)
Minimum linewidth / line distance0.075/0.065mm(3mil/2.8mil)
Minimum aperture0.15mm(6mil)
Minimum welding pad0.2mm(8mil)
Impedance control+/-10%
Shape processing accuracy+/-0.10mm(4mil)
Board typeFR-4, aluminum - base, copper -base, ROGERS, ARLON, Teflon, composite
Surface treatmentTin spray, ENIG, Immerse Au, immersion silver, im mersion tin, osp, gold osp, electrospray tin


PCB ASSEMBLY CAPABILITY

SMT serviceProcess capability
Processing typeSMT, DIP, After welding, test
Maximum boardL50×W50mm~L510×W460mm
Maximum thickness3mm
Minimum thickness0.5mm
Minimum component1005
Maximum component size150mm*150mm
Minimum pin component spacing0.3mm
Minimum bga spacing0.3mm
Maximum component mounting
accuracy(100FP)
Whole assembly accuracy up to ±50 micron,whole
process repetition accuracy ±30 micron.
SMT capacity4 million pins / day
DIP capacity100 thousand/ day
