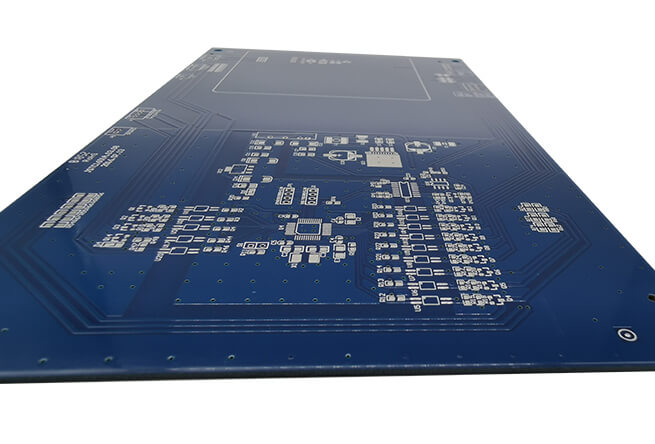

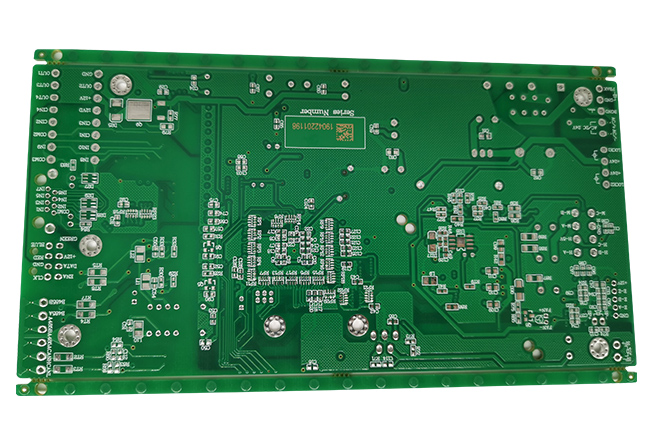

Brand Name: Shenzhen Custom PCB
Model Number: intech-018
Base Material: FR4,Rogers,Aluminum
Copper Thickness: 0.5oz-8oz
Board Thickness: 0.2mm-4mm
Min. Hole Size: 0.1mm-1mm
Min. Line Width: 3mil-10mil
Min. Line Spacing :3mil
Surface Finishing: ENIG,HASL,immersion silver
Application: Electronics,military,medicine, and so on
Certificate: ISO/UL/TS16949/RoHS/TS16949
Layer:1-22 Layers
Testing Service: Fly-probe,100% AOI testing, 100% ET testing,100% FQC
Silkscreen Color: White Black
PCB Standard: IPC-A-610 D/IPC-III Standard
Hole tolerance: PTH: ±2mil, NTPH: ±2mil
Board Thickness Tolerance: ±10%
Impedance Control Tolerance: ±5%

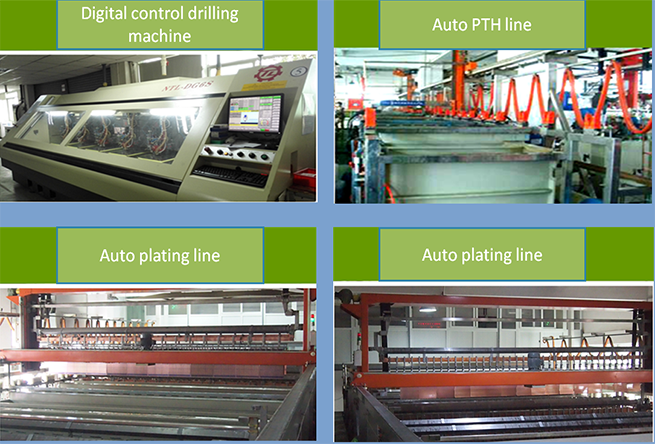

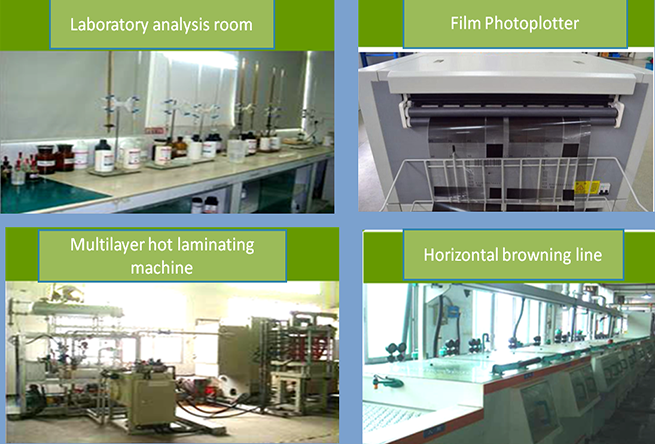

PCB processing capability
| PCB service | Process capability |
| Layer | 1-20 layers |
| Maximum size | ≤600*500mm |
| Thickness | 0.1-5.0mm |
| Wire copper foil thickness | 17-343um（10oz） |
| Minimum linewidth / line distance | 0.075/0.065mm（3mil/2.8mil） |
| Minimum aperture | 0.15mm（6mil） |
| Minimum welding pad | 0.2mm（8mil） |
| Impedance control | +/-10% |
| Shape processing accuracy | +/-0.10mm（4mil） |
| Board type | FR-4, aluminum - base, copper -base, ROGERS, ARLON, Teflon, composite |
| Surface treatment | Tin spray, ENIG, Immerse Au, immersion silver, im mersion tin, osp, gold osp, electrospray tin |
