  With the rapid development of mobile phones, electronics, and communications industries, there also exists the continuous growth and rapid growth of the PCB Circuit Board industry. The requirements for the number of layers, weight, precision, materials, color, and reliability of components are increasing.


  However, due to fierce market price competition, the cost of PCB Circuit Board materials is also on the rise. More and more manufacturers are monopolizing the market at low prices in order to enhance their core competitiveness. However, behind these ultra-low prices, the material cost and process cost are reduced, but the device is usually prone to cracks, scratches and the comprehensive factors such as precision and performance are not up to standard, seriously affecting the solderability and reliability of the products used.


  Faced with a variety of PCB circuit boards on the market, the quality of PCB circuit boards can be determined from two aspects: the first method is to judge from the appearance, and the other is to judge from the quality specifications of the PCB board itself.

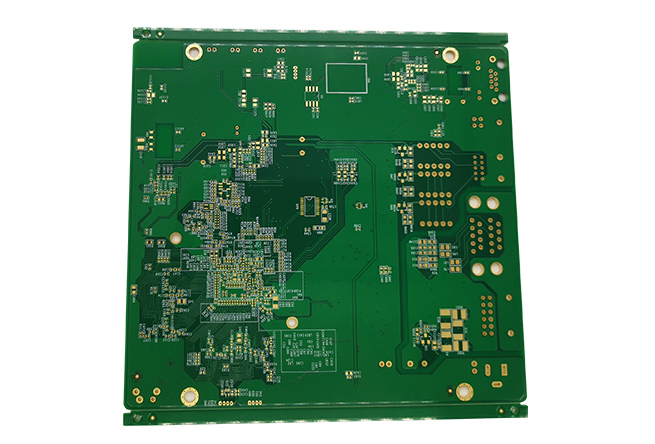

High Frequency fr-4 Pcb Printed Circuit Board HDI PCB




  Method for judging the quality of a PCB board:


  Method 1: Distinguish the appearance of the board from the appearance

  Under normal circumstances, the appearance of PCB circuit board can be analyzed and judged through three aspects:

  ①Standard rule of size and thickness

  The thickness of the board to the standard board is different, and the customer can measure and check the thickness and specifications according to their own products.

  ②Light and color

  The external circuit board has ink coverage, and the circuit board can play the role of insulation. If the color of the board is not bright, there is less ink, and the insulation board itself is not good.

  ③Weld appearance

  Due to the large number of parts on the circuit board, if the welding is not good, the circuit board that the parts are easy to fall off seriously affects the welding quality of the circuit board. It is very important to carefully identify the interface.


  Method 2: High-quality PCB circuit boards need to meet the following requirements

  ①After the components are installed, the telephone should be easy to use, that is, the electrical connection should meet the requirements;

  ②Line width, line thickness, line spacing meet the requirements, so as to avoid line heating, open circuit, and short circuit;

  ③It is not easy to fall off due to high temperature copper skin;

  ④Copper surface is not easy to oxidize, if it affects the installation speed, and soon after oxidation, it will be broken;

  ⑤No additional electromagnetic radiation;

  ⑥The shape is not deformed, so as to avoid deformation of the outer casing after installation and the screw holes are misaligned. Now it is mechanized installation, the hole position of the circuit board and the deformation error of the line and design should be within the allowable range;

  ⑦And high temperature, high humidity and special environment should also be considered;

  ⑧The mechanical properties of the surface should meet the installation requirements;


  The above is the method of judging whether the PCB circuit board is good or bad. When purchasing the PCB circuit board, be sure to polish your eyes. If you have any other questions, please let us know, who is a professional China PCB Fabrication Manufacturer.
